Tuff Bull

DP-6021

DP-6021

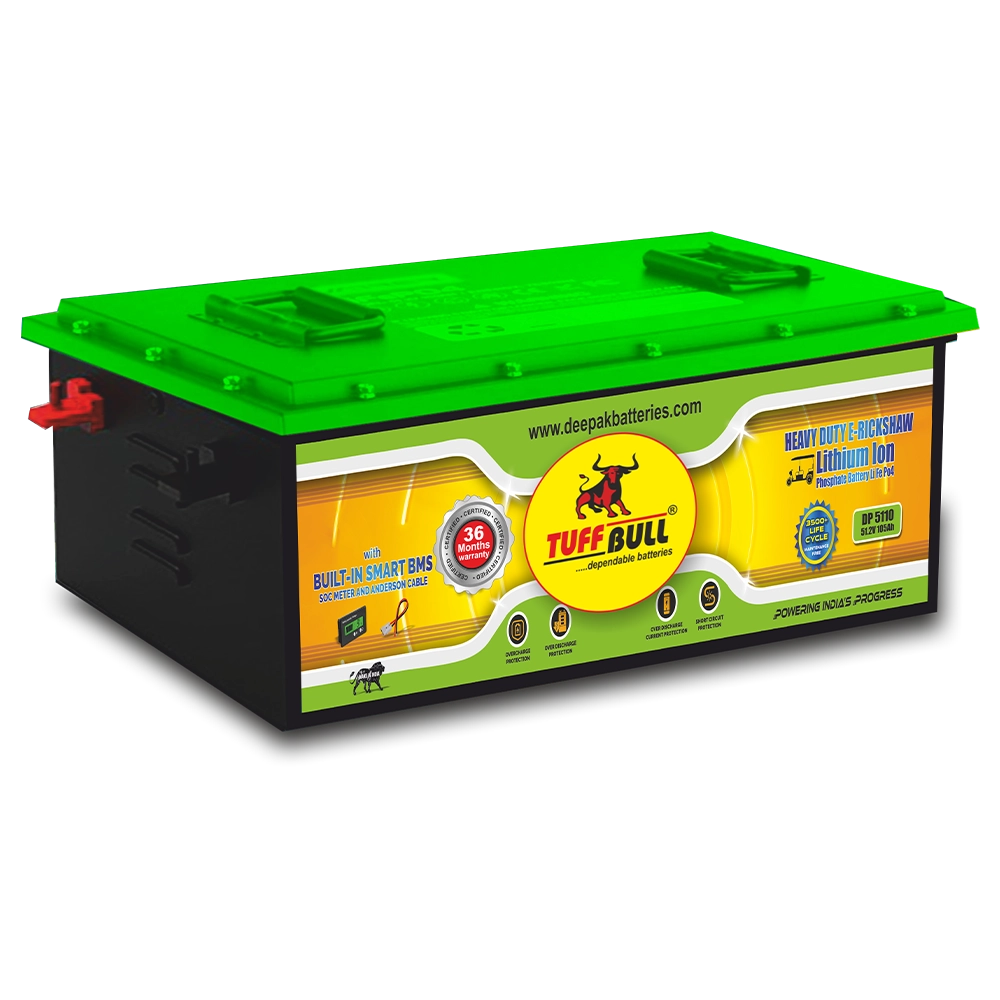

Lithium Battery

Rs. 187,500.00(Incl. of all taxes)
Rs. 187,500.00
Sale Sold out

  • Minimum 1 Year Warranty

  • Home Delivery

  • 100% Original

  • QC Passed
View full details

Product Specifications

Category Content Specification
Over Charge Protection Over charge detection voltage 3.7 ±0.025V
Over Charge Protection Over charge release voltage 3.6 ±0.025V
Over Charge Protection Maximum charge voltage 58.4 ±0.05V
Over Charge Protection Standard charge current ≤16A
Over Discharge Protection Over discharge detection voltage 2.7 ±0.025V
Over Discharge Protection Detection delay time 0.5 – 1.5 sec
Over Discharge Protection Over discharge release voltage 2.6 ±0.025V
Over Discharge Current Protection Over discharge detection current 121 ±30A
Over Discharge Current Protection Detection delay time 200 ms
Over Discharge Current Protection Release condition Cut load
Over Discharge Current Protection Maximum continuous current ≤96A
Short Circuit Protection Detection condition Exterior Short Circuit (333A)
Short Circuit Protection Detection delay time 200 µs
Short Circuit Protection Release condition Cut short circuit
Electrical Characteristics
Parameter Value
Nominal Voltage 51.2V
Nominal Capacity 105Ah
Battery Pack Energy 5.355 kWh
Impedance (Max at 1000Hz) ≤ 20 mΩ
Operation Conditions
Item Specification
Charge Method Constant Current / Constant Voltage (CC-CV)
Max Charge Voltage 58.4V
Max Charge Current 50A
Peak Instant Discharge Time 5 seconds
Discharge Cut-off Voltage 43.2V
Discharge Temperature -20°C ~ 60°C
Storage Temperature 15°C ~ 35°C
Height 280 ±2 mm
Width 380 ±2 mm
Length 585 ±2 mm
Weight ~50 kg
